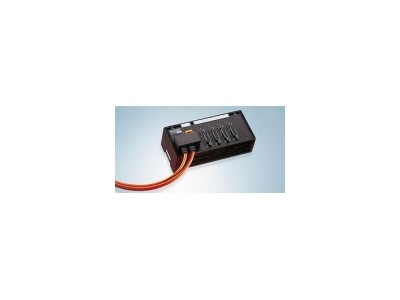

The M1200 is a Lightbus interface card designed to integrate customer-specific electronics into Lightbus systems. The M1210 interface card is equipped with an integrated 24 V DC/5 V DC regulator power supply and an easy mounting rack. 32 parallel data input/output, 4 fast interrupt and interface control signals, easy to adapt to a variety of applications.

characteristic

All digital functions can be integrated into one LCA (logical unit array) loop

The communication protocol is optimized for 32-bit data transmission

Designed for onboard card with 2 34 pin connectors

Fast data transfer from PC, PLC or CNC to application loop

Integrate other application functions into the LCA communication IC, including such as calculator or bus interface (6000 more equivalent gates)

Easy integration of customer equipment into the Lightbus system

Microprocessor bus interface for Intel? And Motorola processor
